Recommended Relays for IoT Applications: A Comprehensive Guide

Relays are essential switching components in IoT (Internet of Things) projects, enabling control of high-voltage/high-current loads such as motors, lights, and home appliances. In smart homes, industrial automation, agricultural monitoring, and other applications, the choice of relay module directly impacts system stability and safety.

This guide covers commonly used relay types in IoT, selection criteria, recommended models, and practical applications to help developers choose the optimal relay solution.

1. Key Applications of Relays in IoT

1. Smart Home Automation
   • Controlling lights, sockets, curtains (e.g., ESP8266/ESP32 + relay).
2. Industrial Automation
   • PLC-based control of motors, pumps, and solenoid valves.
3. Agricultural IoT
   • Automated irrigation systems (activating water pumps/valves).
4. Energy Management
   • Load switching in solar/wind power systems.

2. Common Relay Types in IoT

Type	Characteristics	Use Cases
Electromechanical Relay (EMR)	Mechanical contacts, limited lifespan (~100k cycles), but handles high voltage/current	Industrial control, home appliances
Solid-State Relay (SSR)	No moving parts, long lifespan (1M+ cycles), noise-resistant, but generates heat	High-frequency switching (e.g., PWM dimming)
Power Relay	High-current handling (10A+), suitable for motors/heaters	Industrial automation
Optocoupler-Isolated Relay	Signal isolation, protects MCU from interference	High-noise environments (e.g., motor control)
Wi-Fi/Bluetooth Relay	Built-in wireless connectivity	Remote smart home control

3. Critical Relay Selection Parameters

1. Load Capacity
   • Voltage: AC 220V / DC 30V (match controlled device requirements).
   • Current: Common ratings: 5A/10A/30A (use power relays for high current).
2. Control Signal
   • Low-Level Trigger: Activates when MCU GPIO outputs 0V.
   • High-Level Trigger: Activates at 3.3V/5V from MCU.
3. Isolation
   • Optocoupler Isolation: Prevents high-voltage interference (recommended).
4. Lifespan
   • EMR: ~100k cycles, SSR: 1M+ cycles.

4. Recommended Relay Models for IoT Projects

1. Basic Relays (Arduino/ESP8266/ESP32-Compatible)

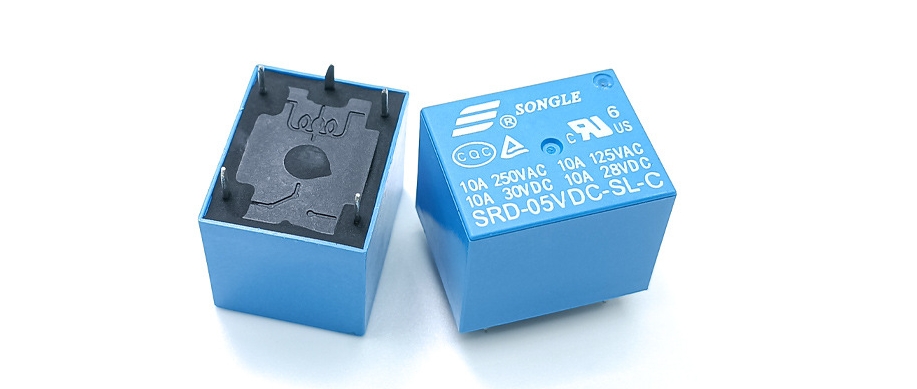

• Model: SRD-05VDC-SL-C (5V EMR)

• Features: 10A 250V AC / 30V DC, low-cost, ideal for beginners.
• Applications: Smart plugs, lighting control.

• Model: Songle SRA-12VDC-SL (12V Relay)
• Features: 12V drive, suitable for automotive/industrial use.

2. Solid-State Relays (SSR) – High-Frequency Switching

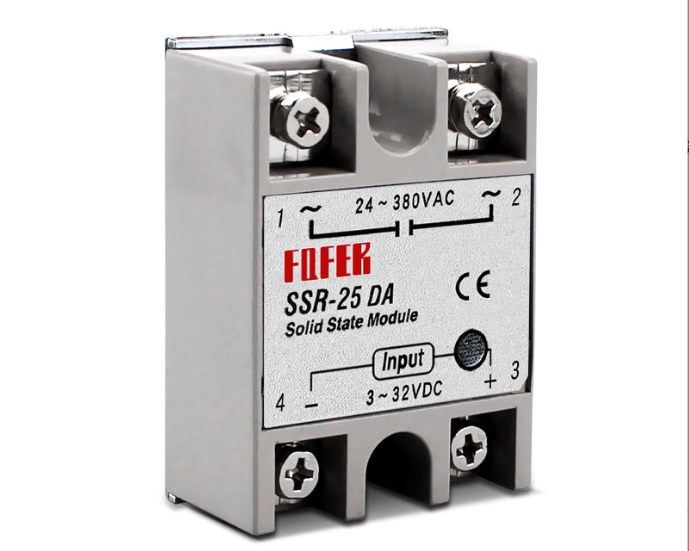

• Model: FOTEK SSR-25DA (25A SSR)

• Features: Noiseless, long lifespan, ideal for dimming/heating control.

3. Optocoupler-Isolated Relays (Safety-First)

• Model: JQC-3FF-S-Z (5V Opto-Relay)

• Features: MCU protection via galvanic isolation.

4. Wireless Smart Relays (Plug-and-Play)

• Model: Sonoff Basic (Wi-Fi Relay)

• Features: Direct app control (e.g., eWeLink), perfect for smart home retrofits.

5. Relay Usage Best Practices

1. Safety First
   • Insulate high-voltage (AC 220V) terminals to prevent electric shock.
2. MCU Protection
   • Use optocouplers or flyback diodes (suppress voltage spikes).
3. Thermal Management
   • For high-current loads (e.g., motors), use SSRs or heatsinks.
4. Contact Welding Prevention
   • Implement arc suppression circuits for EMRs in frequent-switching scenarios.

6. Summary & Recommendations

Requirement	Recommended Solution
Low-Cost Entry	SRD-05VDC-SL-C + Arduino/ESP8266
High-Frequency Switching	FOTEK SSR-40DA (SSR)
Industrial High-Current	OMRON G5RL-1A-E (16A Power Relay)
Smart Home (No Coding)	Sonoff Basic (Wi-Fi)

Selecting the right relay enhances IoT project reliability. For low-voltage DC control, SSRs offer longevity; for smart home DIY, Wi-Fi relays provide seamless integration.

Which relay does your IoT project use?
